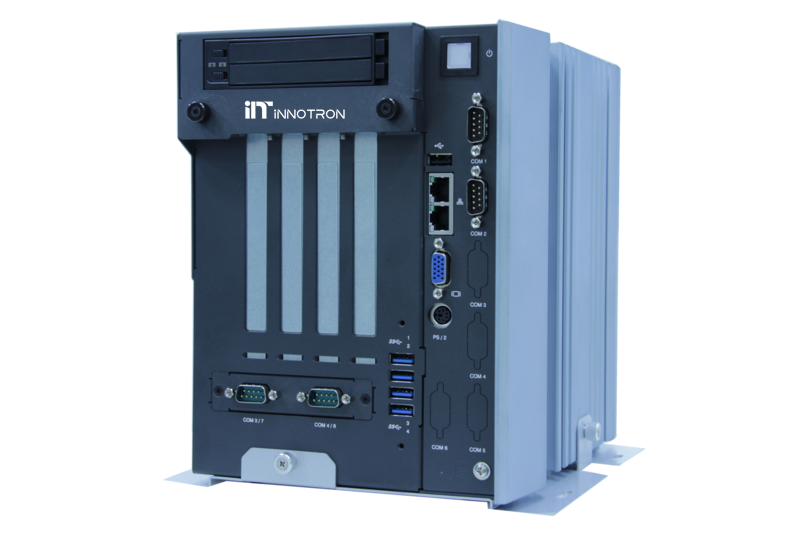

LPC-670
| Model | LPC-670-A0A1 | LPC-670-A1A1 | |
| Processor System | CPU | Intel® 7/8th Gen Core™ i Processor |
Intel® 7/8th Gen Core™ i Processor |
| System Chipset | Intel® H310 |
Intel® Q370 |
|
| BIOS | AMI 128 Mbit SPI Flash | ||
| Memory | Technology | Dual channel (Non-ECC) DDR4 2400 MHz | |
| Max. Capacity |
32 GB |
||
| Socket | 2 DDR4 260-pin SO-DIMM | ||
| Display | Graphics Engine | Intel® HD Graphics P630 | |
| VGA | 1 VGA, up to 2560 x 1600 pixel at 60 Hz | ||
| DVI-D | 1 DVI-D, 1920 x 1200 pixel at 60 Hz(Optional) | ||
| I/O Interface | USB |
5 USB 3.0 |
|
| Serial Port | 2 COM (RS-232), 2 COM (2 RS-422/485) , Extra 4 COM ports (Optional) | ||
| GPIO | N/A | ||
| Parallel Port | 1 LPT(Optional) | ||
| PS/2 | 1 (PS/2 Y cable supports 1 keyboard and 1 mouse) | ||
| Ethernet | Controller | Dual GbE, 10/100/1000 Mbps(LAN 1: Intel® i219LM, LAN 2: Intel i210AT) | |
| Expansion | PCI | 3 PCI expansion slots | |
| PCIe |
1 PCIe x16 expansion slot |
1 PCIe x8, 2 PCIe x4 1 PCIe x1 expansion slot |
|
| Storage | SATA |
2 SATA3.0(600MB/sec), Swappable Box |
2 SATA3.0(600MB/sec), Support RAID 0/1 |
| Power | Power Type | AT / ATX | |
| Power Supply Voltage | 100-240 V AC, 4-2 A, 60-50 Hz, 250 W | ||
| Thermal Dissipation | Fan | ||
| Environment | Operational | -20~55° C (-4~131° F) | |
| Non-Operational | -30~70° C (-22~158° F) | ||
| Vibration |
Operating : MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage : MIL-STD-810G, Method 514.6, Category 24, minimum integrity test |
||
| Shock | Operating : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Storage : MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g | ||
| Certificate | Certification | CE, FCC Class A | |
| General |
Dimensions (W x H x D) |
183.5 x 236.4 x 238.7 mm (7.34” x 9.31” x 9.54”) | |
| Weight | 5.22 kg (11.48 lb) | ||
| Operating System | System Windows 7/8.1/10, WES7-E/P, WE8S, 4.04 | ||
- Expandable Box PC
- 7/8th Generation Intel®TM & Core™ i Processor
-
4 COM, 2 GbE, 4 USB 3.1 Gen1 / 4 USB 3.1 Gen2
- 4 PCI / PCIe Expansion Slots
- 110~230 V AC Power Input, -20~55° C Operating Temperature
- Embedded Control Systems
- Automatic Optical Inspection (AOI)
- Warehouse Management
- Machine Vision and Motion Control
