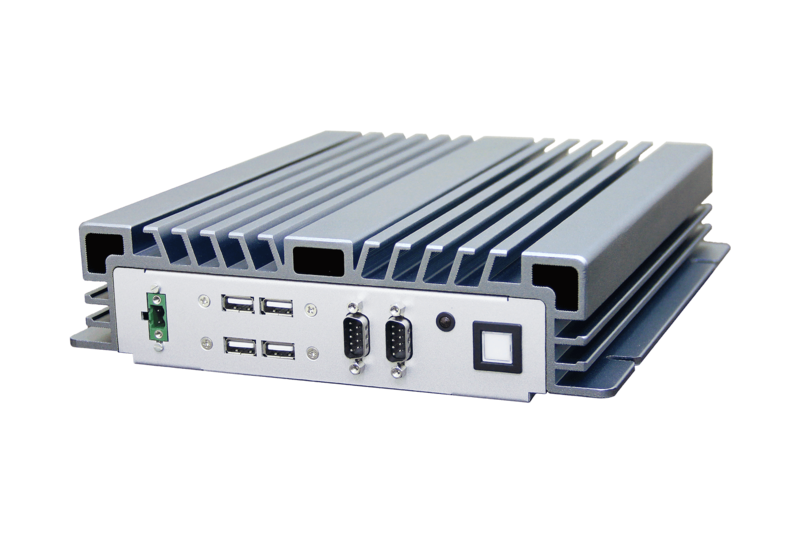

BPC-5070
| Model | BPC-5070-1A1 | BPC-5070-2A1 | |
| Processor System | CPU | Socket LGA 1151 for Intel® Core™ i7/i5/i3/Celeron (Skylake-S) | |
| System Chipset | Intel® Q170 | Intel® H110 | |
| BIOS | UEFI | ||
| Memory | Technology | Dual-channel DDR4 1866/2133 MHz SDRAM | |
| Max. Capacity | 32 GB | 16 GB | |
| Socket | 2 (260-pin SO-DIMM) | ||
| Display | Graphics Engine | Intel® Gen9 Graphics DX 11/12, OGL 4.3/4.4 | |
| HDMI | HDMI 1.4a up to 1080p, 1920 x 1200 @ 60 Hz max. resolution | ||
| Multi Display | Yes (Triple display), 3 HDMI Ports | Yes (Multi display), 2 HDMI Ports | |
| I/O Interface | USB | 8 (4 USB 3.0, 4 USB 2.0) | |
| Serial Port | 2 (RS-232/422/485) | ||
| Ethernet | Controller |
LAN1: 1 Intel® i210 LAN2: 1 I219LM |
LAN1: 1 Intel® i210 LAN2: 1 I219V |
| Audio | Chipset | Realtek ALC887 High Definition Audio (HD) | |
| Connectors | Line out, Mic in | ||
| Storage | SATA | 2 SATA III (6.0 Gb/s), (7 mm 2.5” HDD only) | |
| RAID Function | RAID 0/1 | N/A | |
| Expansion | Mini PCIe | 1 full-size, 1 half-size | |
| Power | Power Type | AT / ATX | |
| Power Supply Voltage | 12-24 V DC input | ||
| Power Consumption(Typical) | 0.8 A @ 12 V (9.5W) | ||
| Power Consumption(Max) | 6.6 A @ 12 V (77.6 W) | ||
| Environment | Operational | -20~45 °C (-4~113° F) w/ 2.5” SSD | |
| Non-Operational | 0~75 °C (32~167° F) and 60 °C @ 95% RH Non-condensing | ||
| Certificate | EMC | CE, FCC Class A | |
| General | Dimensions(W x H x D) | 238 x 61 x 245 mm (9.37” x 2.40” x 9.64”) | |
| Weight | 3 kg (6.6 lb) | ||
| Operating System | Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04 | ||
- Intel® 6th Gen Core™ i7 Processor up to 3.4 GHz
- DDR4 1866 / 2133 MHz SO-DIMM up to 16 GB
- 2.5” SATA HDD & RAID 0/1
- 3 HDMI (Triple Display Output)
- -20 ~ 45° C Operating Temperature
- Embedded Digital Signage Control Systems
- Factory Automation Applications
- Image Processing (e.g. AOI)
- Transportation Management
- Machine Automation
