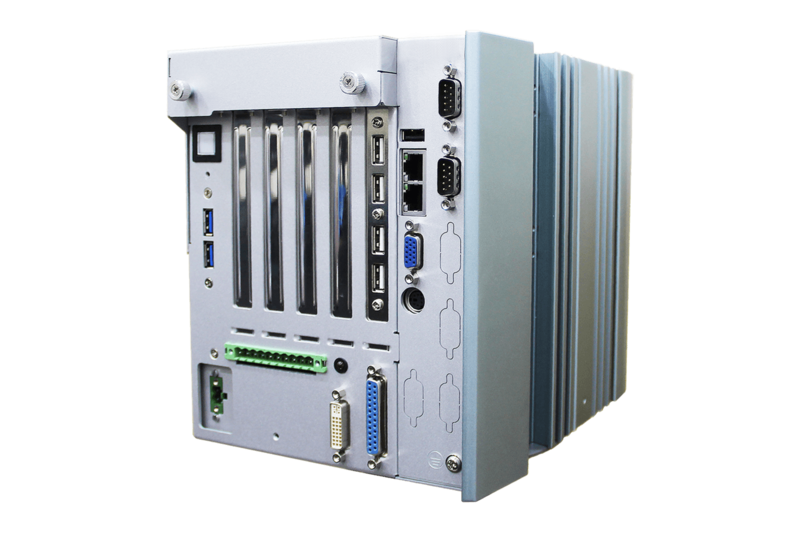

BPC-7450
| Model | BPC-7450-D0A1 | BPC-7450-A0A1 | |
| Processo System | CPU | Intel® 4th Gen Core™ i LGA 1150 Processor, supports i7-4785T, i5-4590T, i3-4350T, G3320TE, G1820TE | |
| System Chipset | Intel® H81 | ||
| BIOS | AMI 128 Mbit SPI Flash | ||
| Memory | Technology | Dual channel (Non-ECC) DDR3 1066/1333/1600 MHz | |
| Max. Capacity | 16 GB | ||
| Socket | 2 DDR3 204-pin SO-DIMM | ||
| Display | Graphics Engine | Intel® HD Graphics 4600 | |
| VGA | 1 VGA, up to 1920 x 1200 pixel at 60 Hz | ||
| DVI-D | 1 DVI-D, 1920 x 1200 pixel at 60 Hz | ||
| I/O Interface | USB | 2 USB 3.0, 5 internal USB 2.0 | |
| Serial Port | 2 COM Ports (RS-232), 6 COM (2 RS-232, 4 RS-422/485) (Optional) | ||
| GPIO | 1 GPIO (8-bit) | ||
| Parallel Port | 1 LPT | ||
| PS/2 | 1 (PS/2 Y cable supports 1 keyboard and 1 mouse) | ||
| Ethernet | Controller | Dual GbE, 10/100/1000 Mbps (LAN 1: Intel® I217V, LAN 2: Intel® I211AT) | |
| Expansion | PCI | 2 PCI expansion slots | |
| PCIe | 1 PCIe x1 expansion slot, 1 PCIe x16 expansion slot | ||
| Storage | SATA | 2 SATA 3.0 (600 MB/sec), 2 SATA 2.0 (300 MB/sec) | |
| Power | Power Type | AT / ATX | |
| Power Supply Voltage | 6-30 V DC, 5-6 A, 120 W | 100-240 V AC, 4-2 A, 60-50 Hz, 250 W | |
| Thermal Dissipation | Fanless | ||
| Environment | Operational | -20~55° C (-4~131° F) | |
| Non-Operational | -30~70° C (-22~158° F) | ||
| Vibration |
Operating : MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage : MIL-STD-810G, Method 514.6, Category 24, minimum integrity test |
||
| Shock | Operating : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Storage : MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g | ||
| Certificate | Certification | CE, FCC Class A | |
| General |
Dimensions (W x H x D) |
183.5 x 216.4 x 238.7 mm (7.34” x 8.65” x 9.54”) | |
| Weight | 5.1 kg (11.22 lb) | 5.22 kg (11.48 lb) | |
| Operating System | Windows 7/8.1/10, WES7-E/P, WE8S, Ubuntu 14.04 | ||
- Expandable Fanless Box PC, Intel® Core™ i Processor
- 1 DVI-D, 2 COM, 2 GbE, 2 USB 3.0, 5 USB 2.0
- 4 PCI / PCIe Expansion Slots
- 6-30 V AC Power Input, -20~55° C Operating Temperature
- Embedded Control Systems
- Automatic Optical Inspection (AOI)
- Warehouse Management
- Machine Vision and Motion Control
